Toner XGVS-16 Professional 16-Port Cable TV Splitter, 5–1000 MHz, 75 Ω, 13–14 dB Attenuation per Port, Metal Housing, CATV Network Installation
Product features

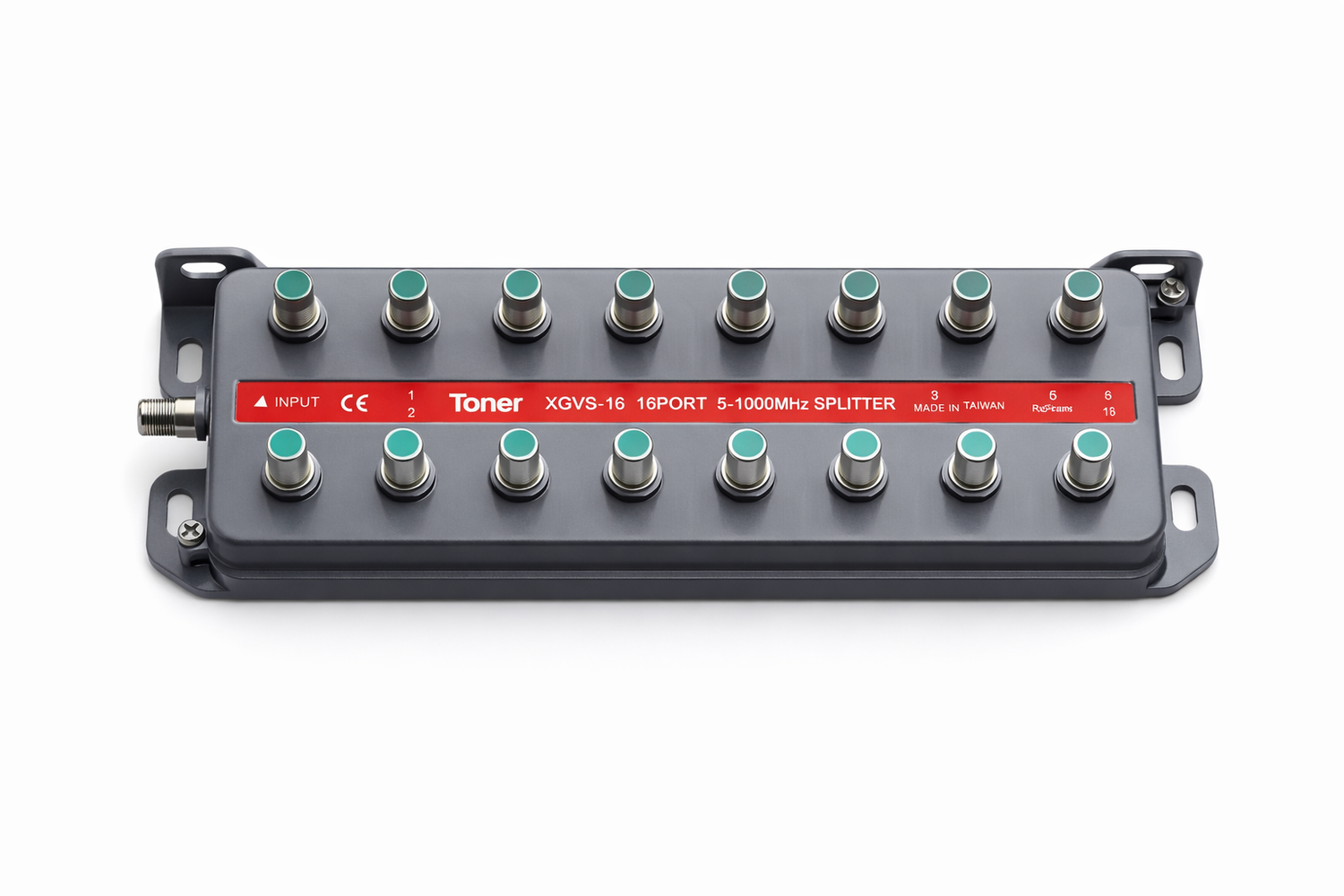

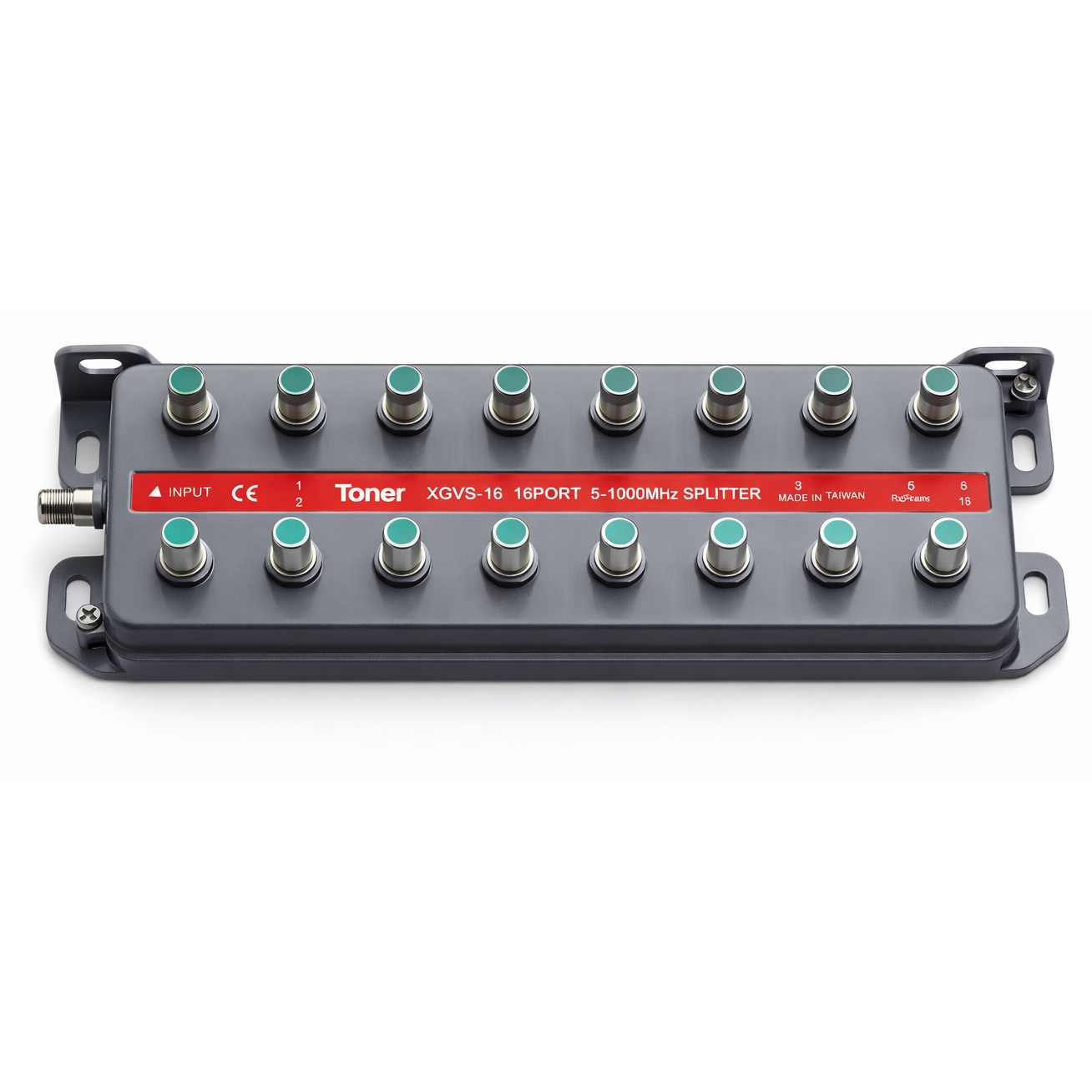

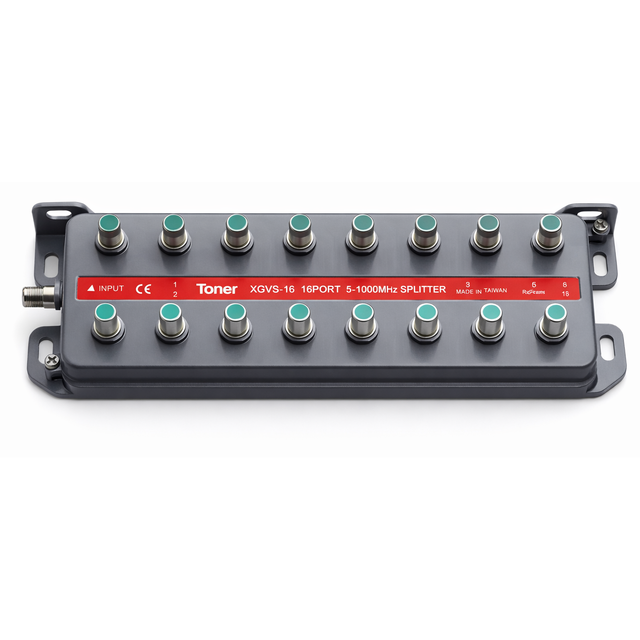

Toner XGVS-16 Professional Cable TV Splitter – 16 outputs, 5–1000 MHz
The Toner XGVS-16 is a professional CATV splitter used to distribute cable TV and cable internet signals via coaxial cable to a large number of user points. The device is ideal for large residential installations, apartment blocks, hotels, guesthouses, commercial buildings or complex multi-TV systems.
Compatibility
- Analogue and digital cable TV
- Coaxial Internet (DOCSIS up to 1000 MHz)
- Residential and professional CATV installations
Key features
- Professional splitter with 16 outputs
- Frequency range: 5–1000 MHz
- Typical attenuation per output: approx. 13–14 dB
- High RF shielding for protection against interference
- Impedance: 75 Ohms
- Standard F-type connectors
- Robust metal housing, resistant to electromagnetic interference
Installation recommendations
- In installations with many sockets or long cables, it is recommended to use a CATV amplifier to compensate for signal loss
- Unused outputs must be terminated with 75 Ohm terminating resistors to maintain the correct network impedance
- Attenuation is identical on all outputs, regardless of the number of ports used
Technical specifications
- Brand: Toner
- Model: XGVS-16
- Number of outputs: 16
- Frequency range: 5–1000 MHz
- Output attenuation: approx. 13–14 dB per port
- Impedance: 75 Ohms
- Application: cable TV signal distribution and coaxial Internet
